Description

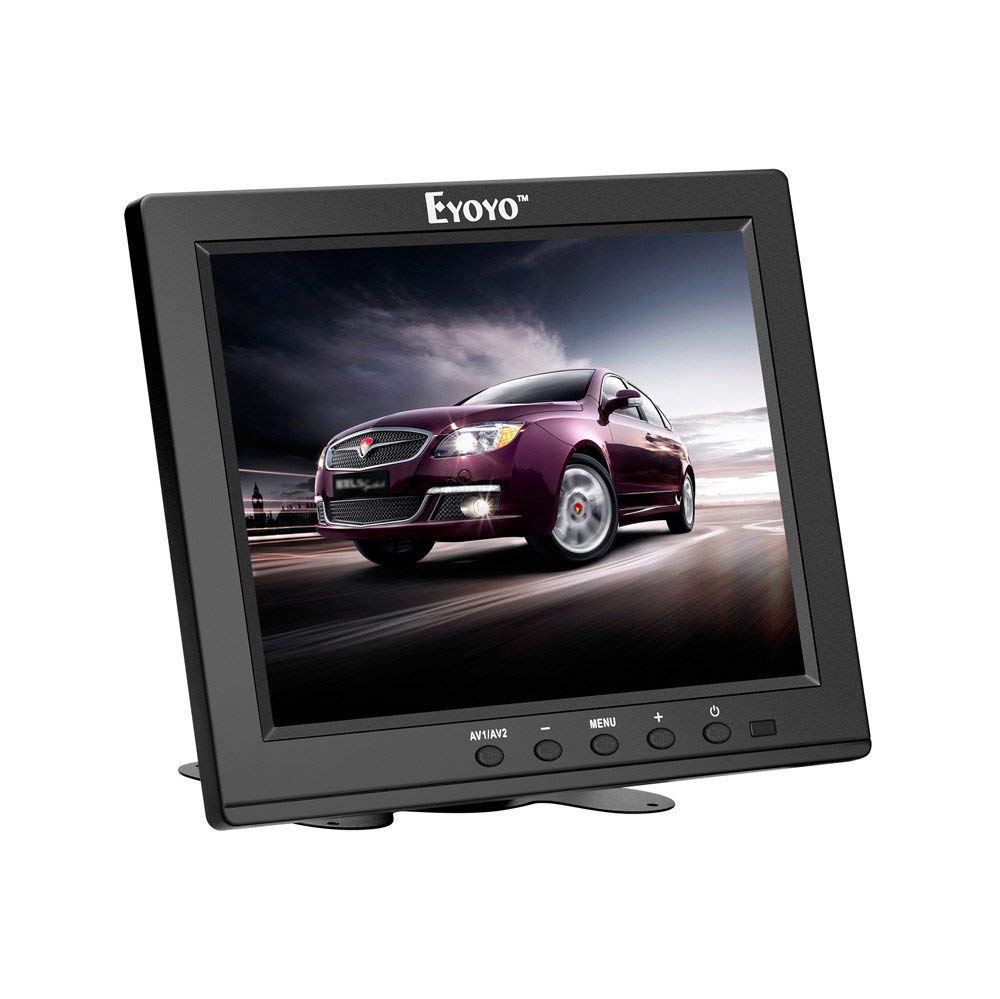

8 inch small hdmi monitor, high resolution (1024x768) LCD screen, the image is clear and exquisite, colorful

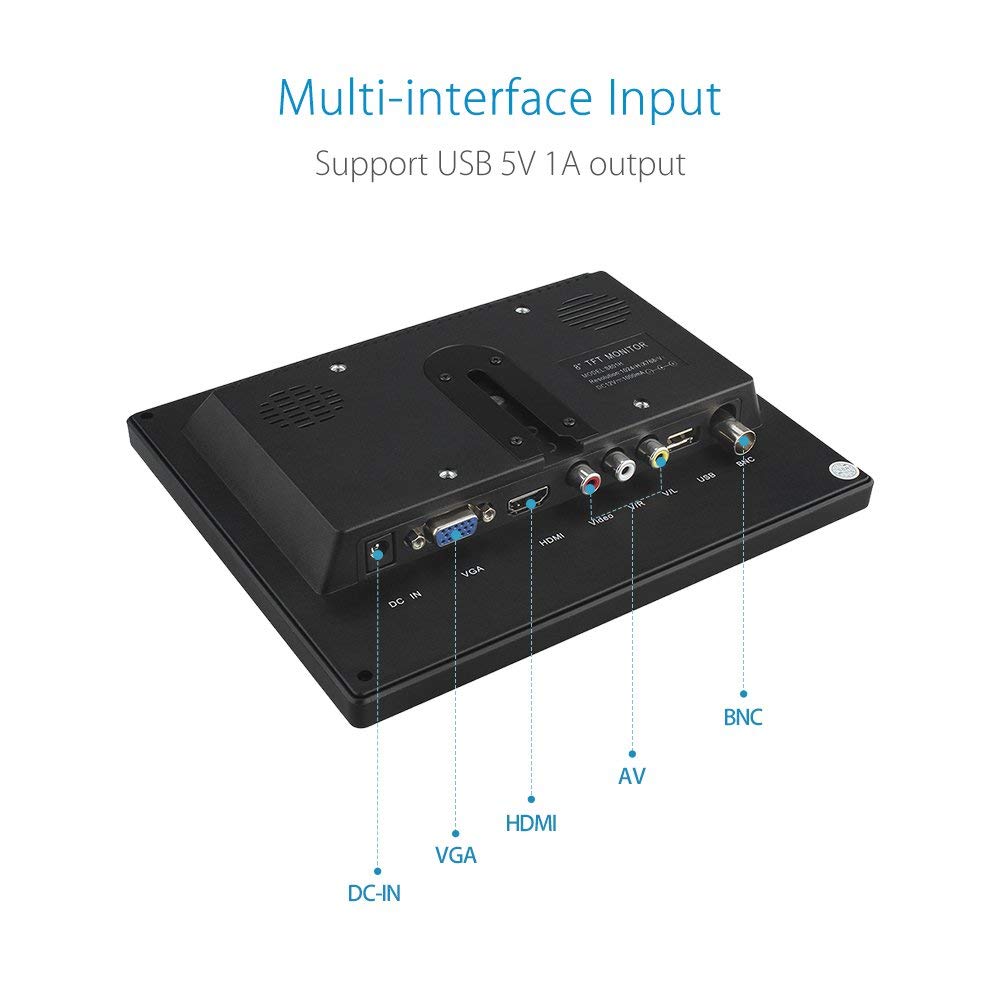

Support for BNC/HDMI/VGA/AV input, supports chromatic YPbPr input, color more vivid, the image more realistic, it also supports Raspberry Pi by hdmi port
Built-in high-quality loudspeakers; It can be used as a mini dvd monitor,cctv monitor, PC monitor.

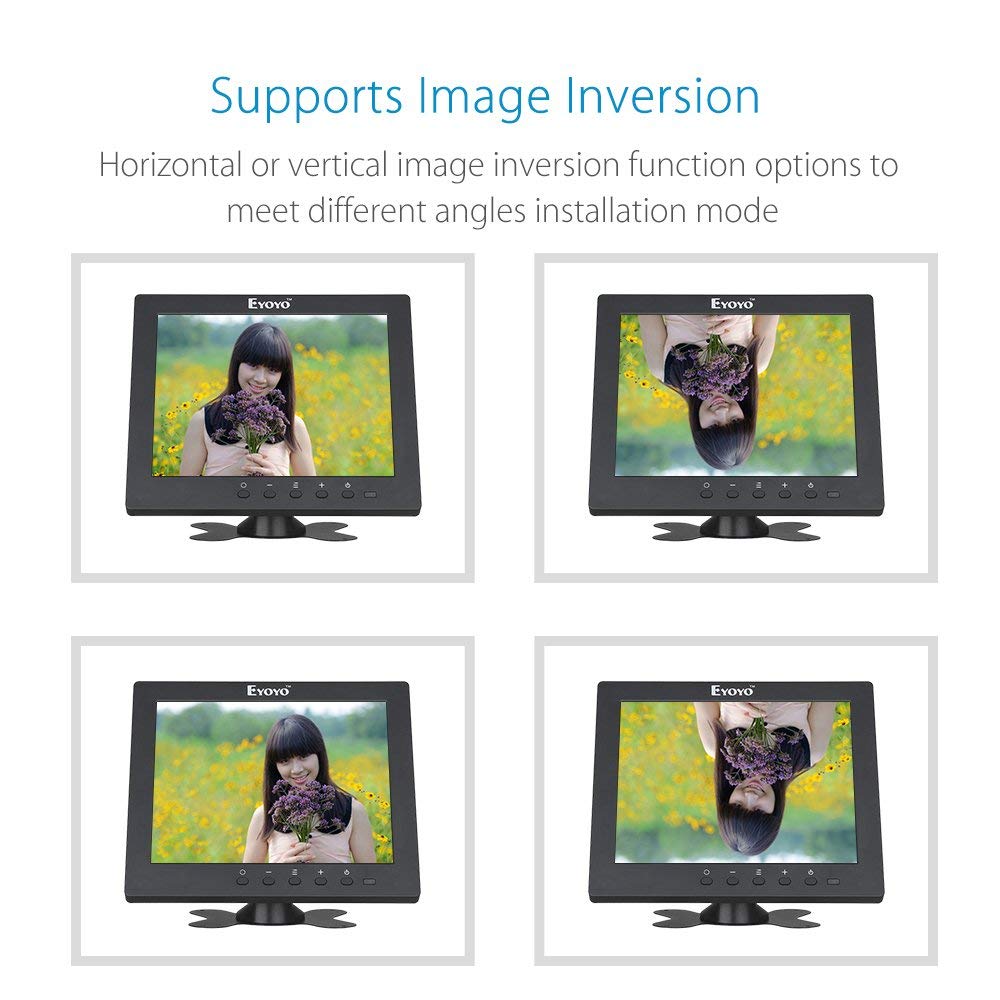

Support image flip up and down control, adapts to different installation mode

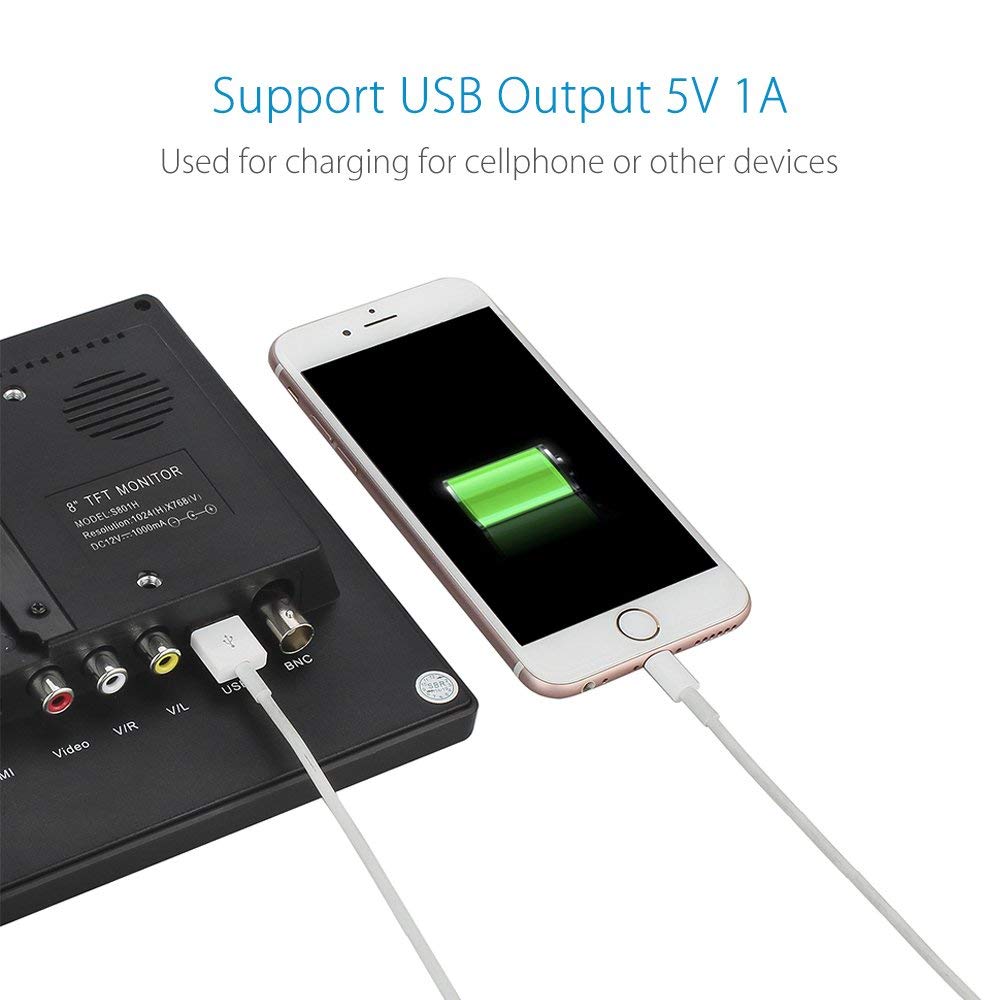

Supports USB output 5V 1A, which can be used for charging for cellphone, simple fashion body light and portable

Features

Simple fashion body, light and portable
Uses 8 inch high resolution (1024x768) TFT LCD screen, the image is clear and exquisite, colorful
Support for BNC input, for professional security monitoring equipment is connected, so that signal mutual interference reduction, can achieve the best signal effect
Supports chromatic Ypbpr input, color more vivid, the image more realistic
Support for VGA input, can be used for computer liquid crystal display (640*480/60Hz, 800*600/60Hz, 1024*768/60Hz)
Supports high-definition HDMI input
Built-in high-quality loudspeakers
Supports image flip up and down control, adapt to different installation mode
Support USB interface to charge (5V/1A)

Specfication

Panel size: 8 inch digital display
Video input: 3Vp-p CVBS
Aspect ratio: 4:3
Resolution: 1024 x 768
Effective viewing area: 162 x 121 mm
Viewing angle: 120°(H)/100°(V)
Panel lifetime: 10,000 hours
Brightness: 250cd/m2
Contrast ration: 300:1
Response time: 12ms
Power input: DC12V-1000mA
Power mode support: Power adapter
Adjustable stand: Landscape
Speaker: 1W(max)*1
OSD Menu Language options: ENGLISH RUSSIAN PORTUGAL SPAIN DETCH FRANCE ITALY CHINESE

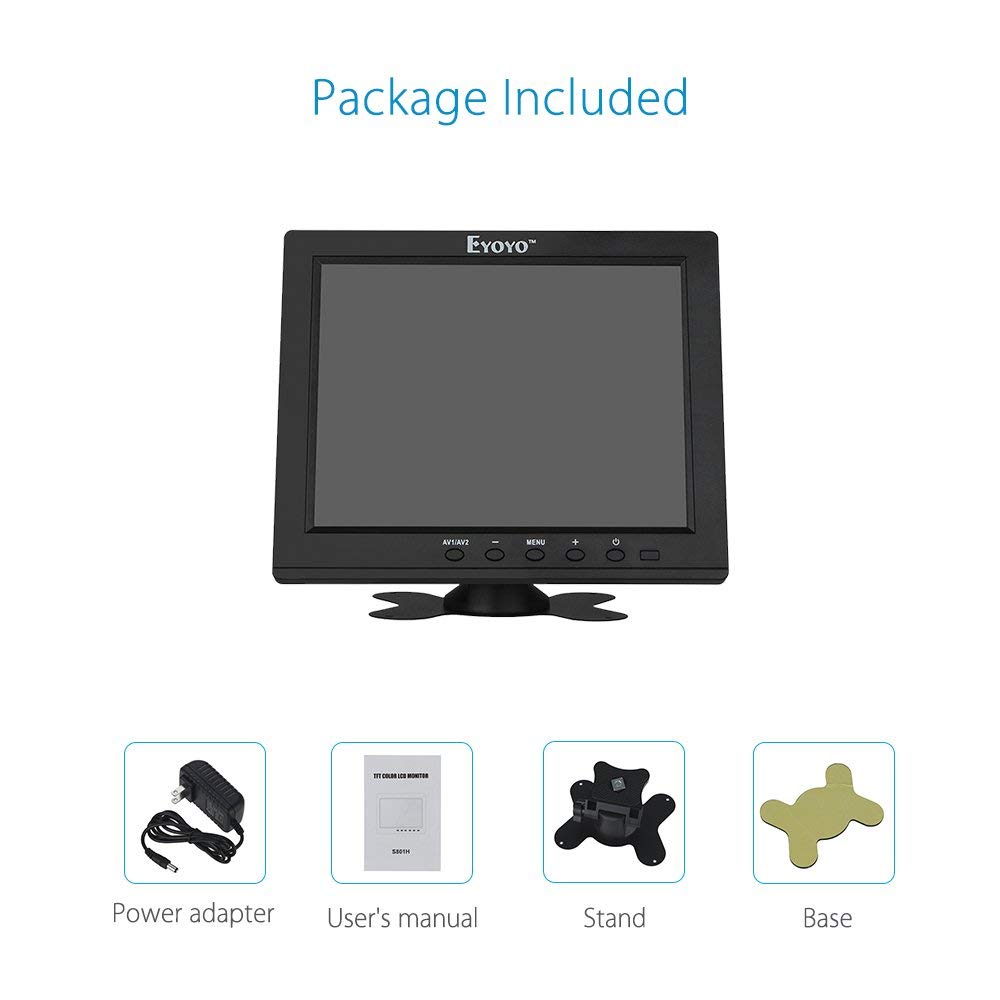

Package

1x8"Monitor ... 1xPower adapter ... 1xStand ... 1xUser manual

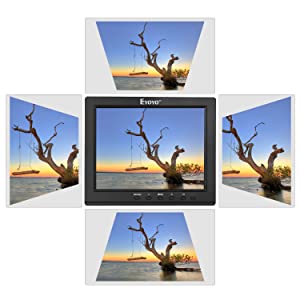

178°Wide Viewing Angle S801H use IPS screen panel,viewing angle up to 178 degrees, means that from the front or side view the effect of the screen is the same. Clear and exquisite image No matter from which angle to enjoy,you can see the bright colors,saturated natural high-quality screen. Excellent picture quality IPS screen can appear the performance of dynamic high-definition screen,is to watch digital high-definition video and fast motion picture of the best experience

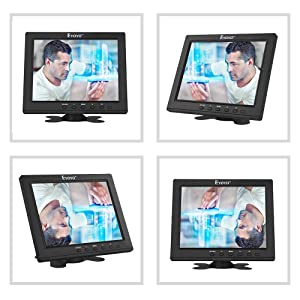

Image Inversion Support image flip up and down control, adapts to different installation mode	HDMI PORT It can be connected to PC/TV/Camera/DVD which have hdmi port,it also suits for raspberry pi
VGA PORT It can be connected to the PC which can be used for screen monitoring	BNC PORT It can be connected to the security camera for security monitoring
