Eyoyo Mini 1D Bluetooth Barcode Scanner Wireless, With Volume Up/Down Button

Loading reviews...
  • Eyoyo Mini 1D Bluetooth Barcode Scanner Wireless, With Volume Up/Down Button

Eyoyo Mini 1D Bluetooth Barcode Scanner Wireless, With Volume Up/Down Button

Loading reviews...

Upgraded for Easy to Use】Add the power on/off button, Long press the scanning button for 3-4 seconds to turn on, Long press the volume + button for 5-6 seconds to turn off.Never worry about the power will be drain up or accidentally touching the barcode scanner in your pocket.Add the volume +/- button to adjust the volume according to your environment.
Mini Pocket Barcode Scanner】Super light only 80g/2.82oz, and mini size.Taking the mini barcode scanner to a grocery, hardware, or design store is very easy than the larger models.The included wristlet keeps it from slipping away from your grasp.
3 Connection Ways & 3 Scanning Mode】Using eyoyo bluetooth barcode scanner, can freely change the connection from bluetooth, 2.4G wireless and USB wired modes. Easily compatible with laptop, PC, tablet, iPhone and iPad, perfectly work with windows xp/7/8/10, Mac OS, Linux. Key trigger mode + Auto-sensing mode +Continous mode. When you change the mode to auto-sensing mode or continuous mode, the scanner will automatically read the barcode once the barcode is detected without pressing the button.
1500mAh High Capacity Rechargeable Battery】Built-in 1500mAh rechargeable battery, can continuously scannning for 16 Hours under normal condition after fully charged, standby time up to 720 hours, and charging takes only 4 hours.LED power indicator, so you can know the remaining power and charge it timely.
Special Functions】with advanced CCD sensor, easily capture 1D barcode directly from computer screen, mobile phone or on paper.Support instant upload and storage mode two types use modes, Add custom prefix/suffix digits, Hide front and back character, add keyboard keys (CR, LF, TAB, CR&LF, etc.) to the scanning operation and so on.

1d barcode scanner

Why Choose This Eyoyo 1D Bluetooth Barcode Scanner?
Upgrade 1: This eyoyo scanner add the volume up/down button, you can adjust volume by press the button directly.Never worry about losing the manual and can't adjust the volume.
Upgrade 2: This bluetooth barcode scanner add the power on/off button, never worry about the battery drain up or or accidentally touching the barcode scanner in your pocket.
Upgrade 3: The mini bluetooth barcode with 1500mAh high capacity rechargeable battery.The battery can scan continuously for more than 16 hours, you don't need to worry about the problem of insufficient battery anymore, so you can work all day without worry.
Upgrade 4: The wireless barcode scanner with the power indicator, you can easily know how much power is available and whether it is time to charge the barcode scanner.
Upgrade 5: The wireless scanner built in USB-C charging port, positive and negative can be inserted, do not worry about damage to the charging interface.

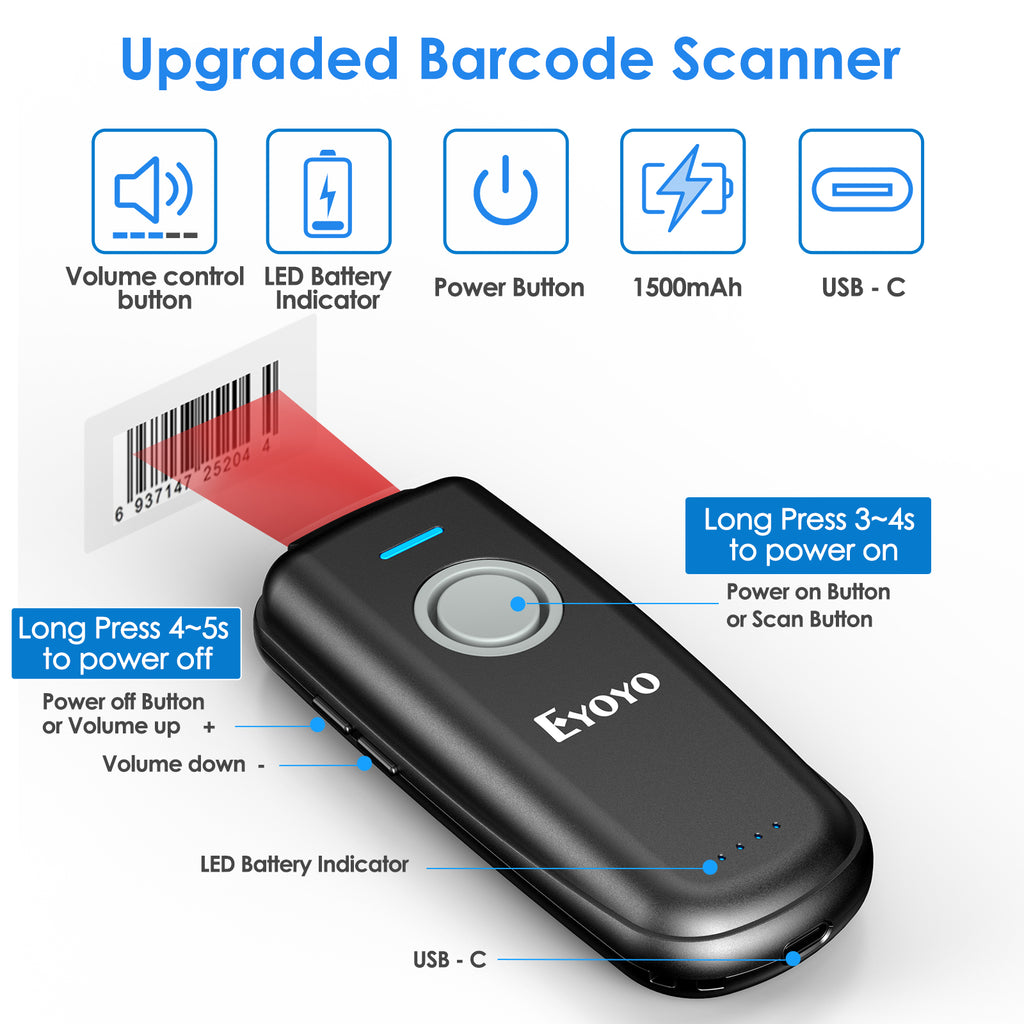

How to power on or power off the barcode scanner?
1.Long press the scanning button for 3-4s to power on barcode scanner.
2.Long press the volume + button for 5-6s to power off barcode scanner.

How to adjust the volume?
1.Adjust the volume by press the volume+ and volume - button.
2.Scanning the set code in the manual to adjust the volume.

upc barcode scanner
eyoyo barcode scanner


wireless scanner

usb wired barcode scanner

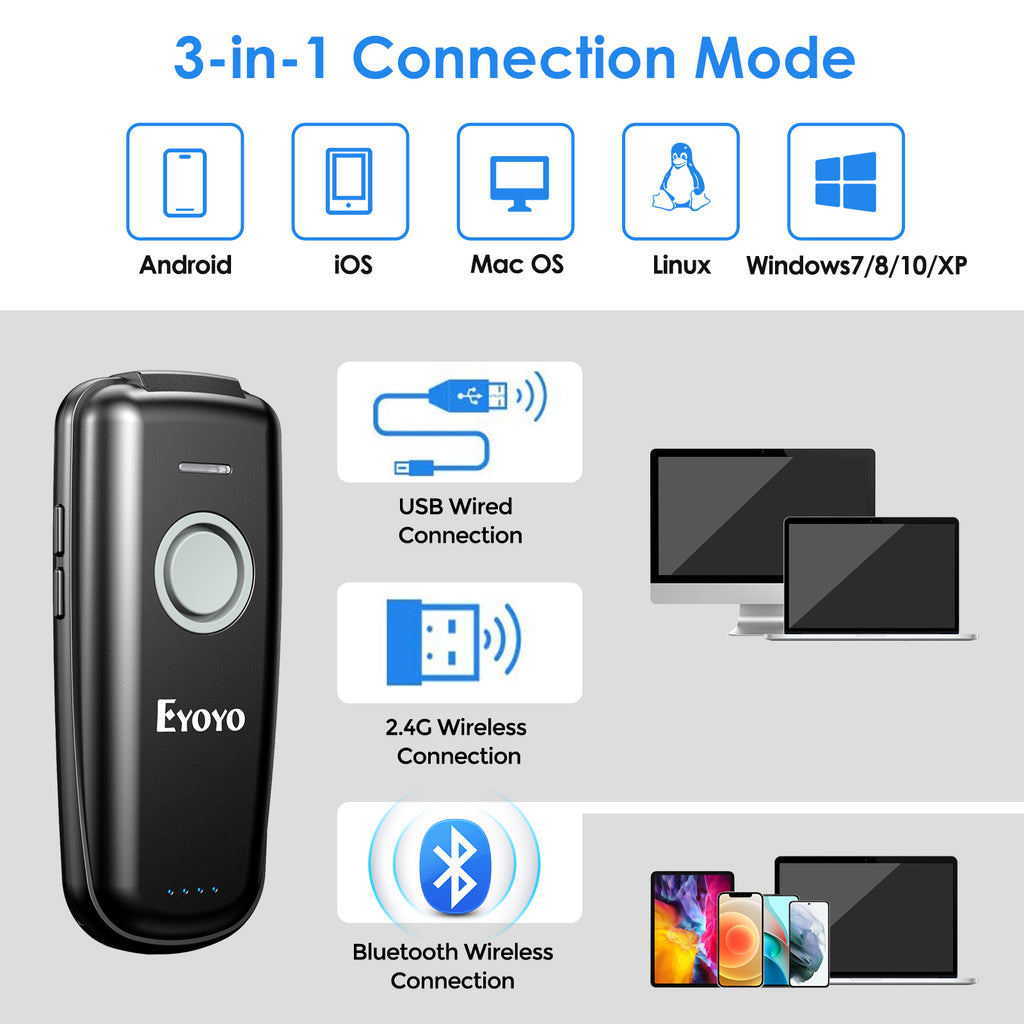

Bluetooth Connection
Easily connect with your phone, tablets and computer via Bluetooth.See the user manual to got the steps of Bluetooth connection

2.4G Wireless Connection
Just scan the set code in the manual and Plug 2.4G USB dongle to your computer it will connect with scanner successfully.

USB Wired Connection
Connect with computer via USB cable, also it can charge for the scanner.

auto sensing barcode scanner

image reader

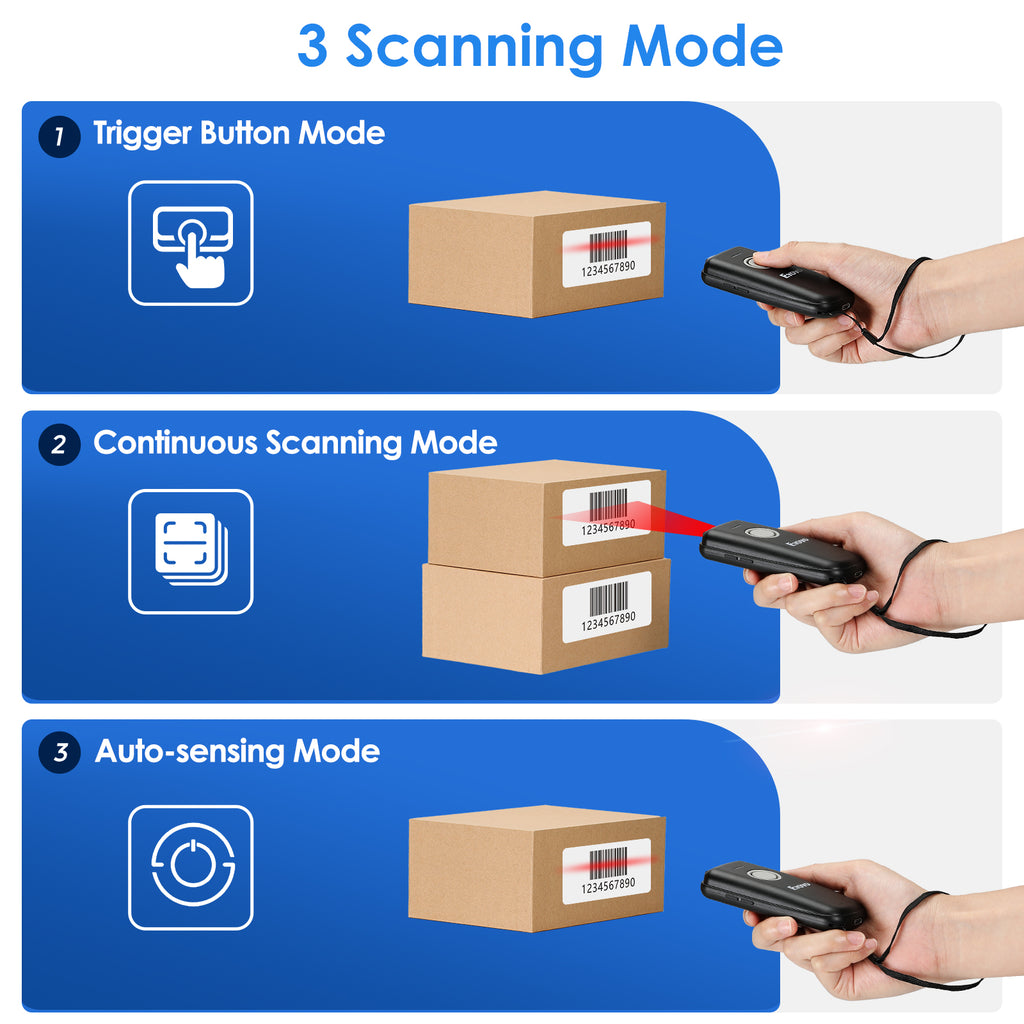

3 Scanning Mode

*Manual Trigger Mode: You need press the trigger button to scaning the barcodes.(Most frequently-used method)

*Continuous Scan Mode: The scanning light is always on when the scanner is electrified.You can scanning barcode without pressing any trigger button.(Especially fits for the production line at factories)

*Auto-Sense mode: The scanning light is off until you put the barcode in front of the scaning window.Once the barcode is detected, the scanning light will turn on.You can also scanning barcode without pressing any trigger button.(Especially fits for retail stores, and inventory warehouses.)

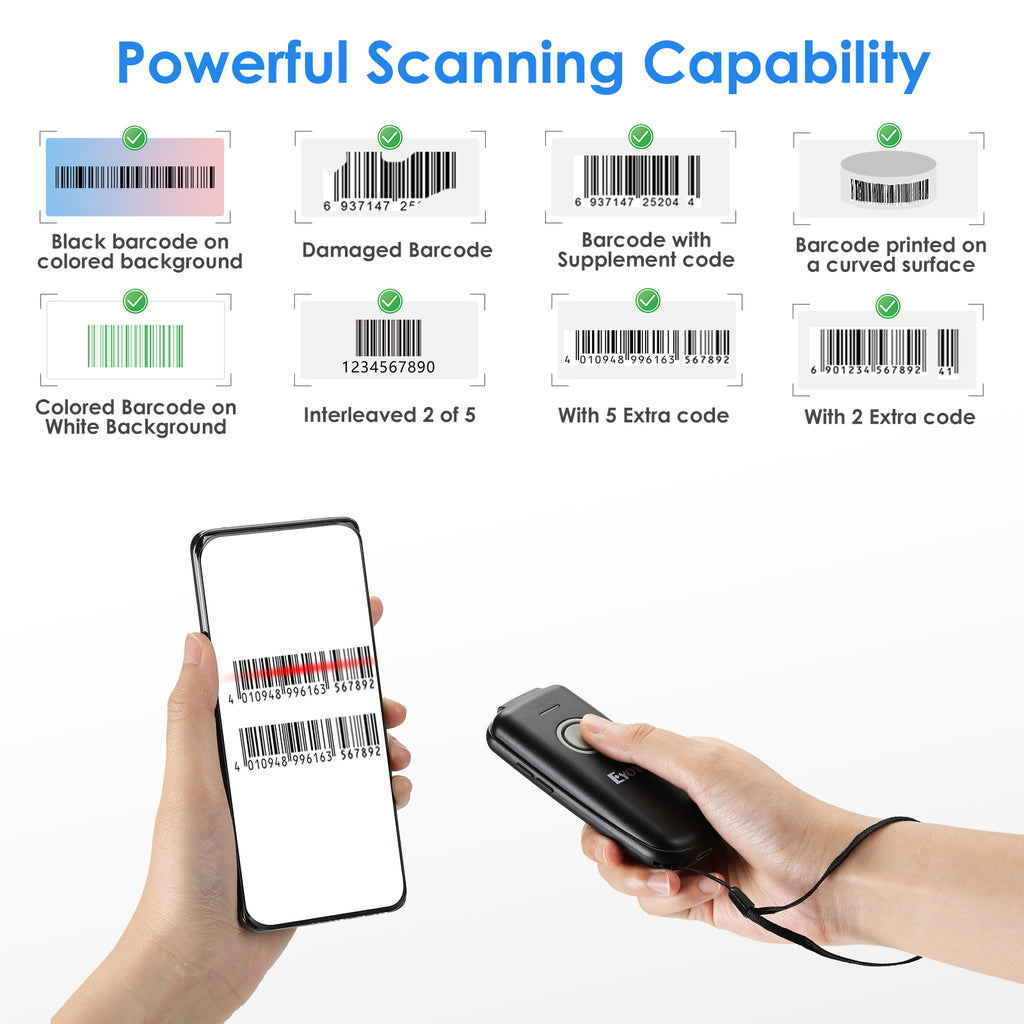

Compatible Barcode Types

Support scan UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, EAN-14,EAN-128, UCC 128, ISBN/ISSN,CODE11, CODE32,CODE 39, Code 39 Full ASCII, CODE93, CODE128, Industrial 2 of 5, Interleaved 2 of 5,

Standard 2 of 5, Chinese 2 of 5


1. it's hard to reading barcode in the sunlight .As this barcode scanner adopt the image scanning.

2.Can't read any type 2D barcode,like QR code,PDF417,etc.

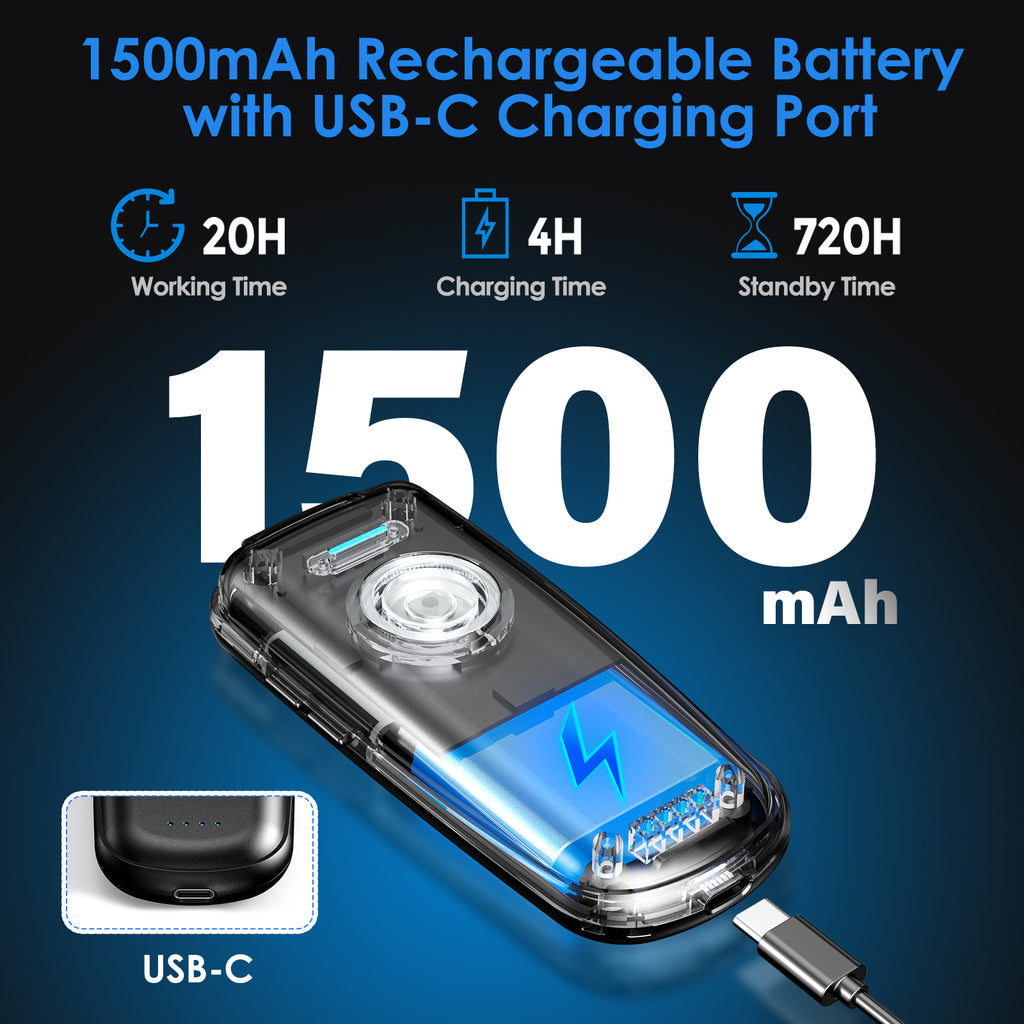

1500mAh High Capacity Battery

*Built in 1500mAh rechargeable battery. The scanner can work up to 16 hours of continuous scanning.

*It can work about two weeks scan in daily used(if you don't often scan the barcode) after full charge. It takes 4 hours to full charge the scanner.


ipad barcode scanner

phone barcode scanner

iphone barcode scanner

Strong Compatibility

*Compatible Device:

Compatible with computer, laptop, POS, smartphone, tablet, iPhone and iPad.

*Compatible Operating System:

Compatible with Windows XP/7/8/10, Mac OS, Linux, Android and IOS.


1.Not compatible with Google Chrome OS.

2.Not compatible with the software that has its own custom scanner, such as Square POS.


More functions

* Add custom prefixes/ suffixes, delete characters

* Add keyboard keys (TAB,CR, CR&LF, LF,etc.) to the scanning operation.

* Enable or disable barcode type

* Turn on/off the beep, Change the Letter capital/lower case

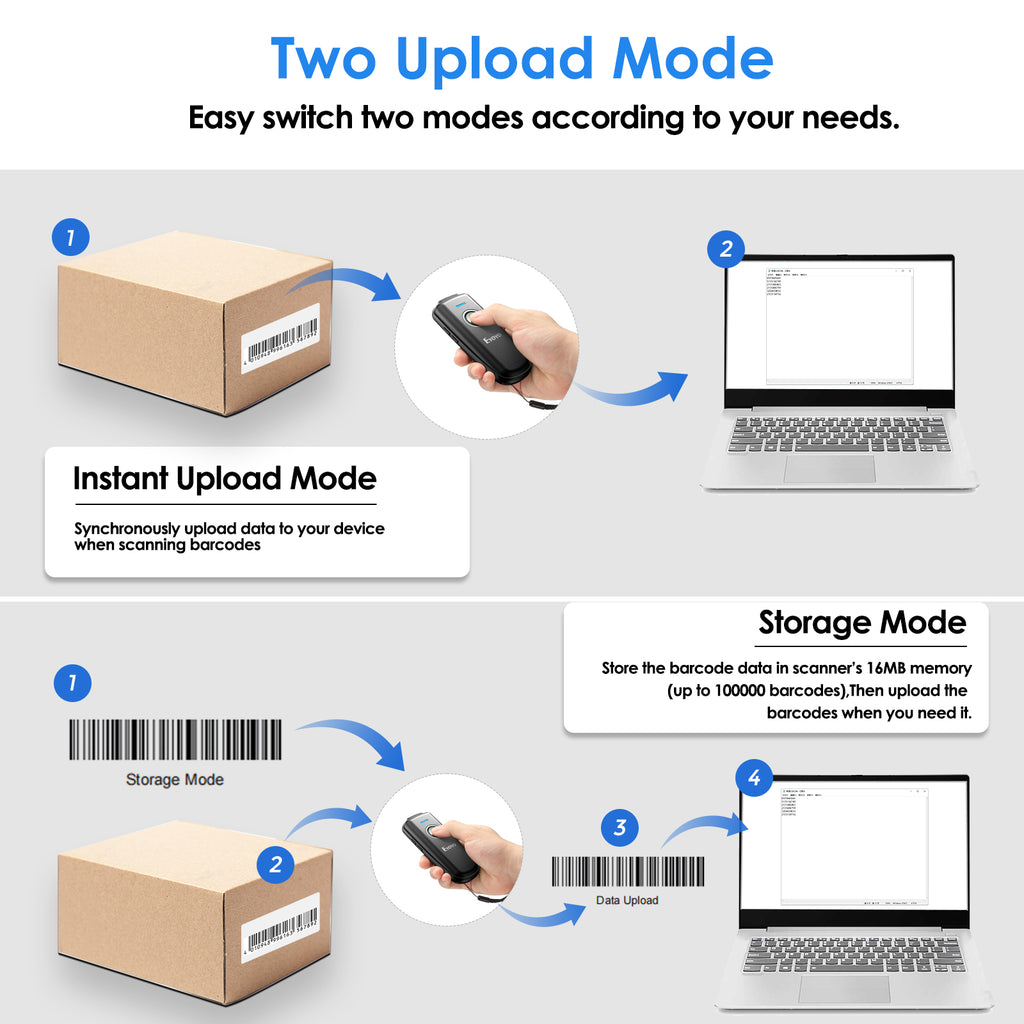

Upload modes

*Instant Upload Mode: Read barcodes and upload it straight to the file you have opened.

*Storage Mode: When using the wireless scanner but far away from the wireless signal transmitter range. Scan the set code of "storage mode", all the scanned barcode will be stored directly into the bulit-in memory of the scanner. when you need to upload the data to your device, you just need to scan the set code of "Upload Data", then the barcodes will upload straight to the file you have opened.
