Features(EM12B)
Multi video input(VGA, AV, HDMI, BNC), high sensitivity, strong anti-jamming features that can withstand interference; multi language OSD menu
Clear image and colorful display, 11.6 inch 1366*768 high resolution TFT LCD monitor
The versatility of this screen enables it to be used in CCTV systems, PC monitors, rear view cameras monitor, and indoor security use. If you are a gamer, connect the screen to your gaming console and enjoy better viewing
Support audio output function,ear phone
Eyoyo 11.6 inch TFT monitor supports audio output functionalities. It has a stable base that can be rotated 180 degree left or right, 35 degree up and 55 degree down.
 |
Investing in home security is a vital investment, getting the cameras is one thing another significant investment will be having the Best CCTV monitor to compliment your camera system.
Eyoyo CCTV monitors come at different sizes, types, and prices.
This model is a portable 11.6 inch monitor with a high resolution of 1366 x 768. You will experience a bright and sharp image from a wide viewing angle of about 160 degrees horizontally and 140 degrees vertically.
The Aspect ratio of 16:9, a brightness level of 350 cd/ m2 and a contrast ratio of 600:1. You will experience more accurate color presentation when it comes to interconnectivity with other devices such as PCs, TV, camera and DVD players or writers...
Specification
Screen Size: 11.6 inch
Aspect Ratio: 16:9
Screen Resolution: 1366(H) * 768(V) pixels
Screen Brightness: 350 cd/m2
Screen Contrast: 600:1
View Angle: H-160 degree, V-140 degree
Response Time: 8-12ms
Video Input: VGA, BNC, HDMI, AV
Function:Video System: PAL, NTSC
Power Supply: DC 12V, 2A
Package Contents
1 * 11.6 Inch TFT Color LCD Monitor
1 * BNC Cable
1 * Power Supply Adapter
1 * User Manual
1 * Base
 |

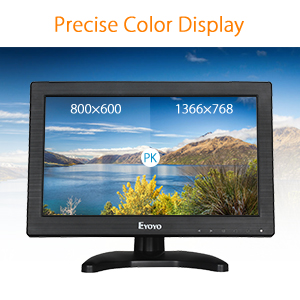

1366*768 High Resolution
|
 |
160°Wide Viewing AngleViewing angle up to H-160 degree,V-140 degree,display clear and exquisite image from different angles |
 |
 |
 |
HDMI PORTHDMI Port allows for connectivity to Raspberry Pi, Cameras, TV, DVD and PCs that support HDMI connectivity |
VGA PORTAny PC with an VGA port can be connected to this Eyoyo LCD monitor and used as a mini PC monitor |
BNC PORTThis port is vital if you intend to use this monitor for security monitoring purposes |
1. It was not the type of item that would hook up to my device
Answer:This one have AV HDMI BNC VGA port,please check and make sure your device support this kind of ports.
2. The monitor did not meet the requirements for the installation location.
Answer: please check your installation location if suitable then buy it
3. Does not work defective the screen is not working
Answer:please check it can’t turn on or don’t have image ,this one has AV HDMI BNC VGA port,if you connect by HDMI ,please match the HDMI mode ,the user manual has the details,please read it.
4. Doesn't work as expected. Slows down computer when surfing on websites.
Answer:This just a small portable monitor,it is the first time to hear that ,we need the product to check the detail.
5. Monitor shuts down and restarts itself every 10-30 minutes.
Answer: close the sleeping mode fuction.
